Socomec Diris A 10 DIN-Rail Mount Power Meter
Downloads:
datasheet manual

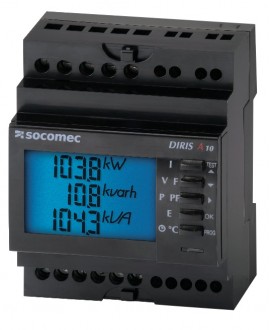

Socomec Diris A 10 DIN-Rail Mount Power Meter

Model: 4825U010

A revenue grade class 0.5, compact, DIN-rail mount power & energy meter with LCD display - no communications.

$316.47 USD

2 to 3 Weeks


Modular multi function meter

The DIRIS A10 is a revenue grade class 0.5 multi function meter for measuring electrical values in low voltage networks in modular format. It allows all electrical parameters to be displayed and the measurement, energy metering and communication functions to be used. In addition, the DIRIS A10 has a function for correcting errors in CT connections. It also allows variations in temperature to be detected thanks to its internal temperature measurement function.


Key Features

  • Multi-measurement and metering
  • THD voltages and currents up to level 51
  • Programmable hour meter
  • Alarm management
  • RS485 Jbus/Modbus communication
  • Dual tariff function
  • 4 DIn modules
  • ANSI C12.2 certified
The Socomec Diris A10 Setup

Specifications

Multi-function meter

  • Current
    • instantaneous: I1, I2, I3, In
    • maximum average: I1, I2, I3, In
  • Voltages & frequency
    • instantaneous: U1, U2, U3, U12, U23, U31, F
  • Power
    • instantaneous: 3P, ΣP, 3Q, ΣQ, 3S, ΣS
    • maximum average: ΣP, ΣQ, ΣS
  • Power factor
    • instantaneous: 3PF, ΣPF
  • Internal temperature Metering

Metering

  • Active energy: + kWh
  • Reactive energy: + kvarh
  • Hours

Harmonic analysis

  • Total harmonic distortion (level 51)
    • Currents: thd I1, thd I2, thd I3
    • Phase-to-neutral voltage: thd U1, thd U2, thd U3
    • Phase to phase voltage: thd U12, thd U23, thd U31

Dual tariff function
Selection of one out of 2 billing tariffs

Events
Alarms on all electrical values

Communications
RS485 (JBUS/MODBUS) digital

Output

  • Remote comand of apparatus
  • Alarm report
  • Pulse report

Input
Remote control

The Socomec Diris A10 Unit Overview

  1. Backlit LCD screen.
  2. Direct access key for currents (instant and maximum) and current THD.
  3. Direct access key for voltages, frequency and voltage THD.
  4. Direct access key for active, reactive and apparent power (instantaneous and max. values) and power factor.
  5. Direct access key for energies and hour meter.
  6. Pushbutton for currents, temperatures and CT setup wiring correction.
  7. Metrological LED.
