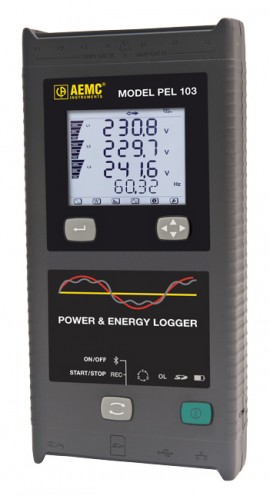

AEMC PEL 103 Single/Three-Phase Power & Energy Logger with LCD and Bluetooth

Model: PEL 103 | Order No: 2137.52

Single/three phase power & energy datalogger designed for electricians, facilities engineers, contractors and energy professionals who need to record electrical or energy use over time. Includes on-board display.

$1,995.00 USD

Availability: 1 in Stock
Add In House NIST Traceable Calibration to your PEL 103

The PEL 103 is a low cost, simple to use, one-, two- (split-phase) and three-phase (Y, Δ) power/energy data logger.

This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential energy audits. All vital energy data is easily measured, recorded, analyzed and reports generated with confidence and minimal configuration time and effort.

The PEL 103 has many up-to-date features demanded by the present market conditions.

The package is laid out in such a way that it can be installed in a load center panel including the current sensors and still allow the door to close on most panels. The PEL 103 offers all the essential functions for data logging Power/Energy from most of the electrical power networks in use today. The PEL 103 energy loggerss measures three voltage and three current inputs and records these inputs as well as Watts, VARS, VA and energy (kWh, kvarh and kVA). Power factor, displacement power factor, crest factor, frequency and THD are calculated and recorded as well. Individual harmonic information including value, % and phase angle out to the 50th harmonic is also recorded at the operator's choice. All variables are recorded and stored on a one second basis and on user selectable demand intervals from one to sixty minutes. Energy costs can be calculated and displayed quickly and easily by simply programming in the unit cost for a kilowatt hour. Data is stored on internal memory or on a removable SD card. Data can be retrieved by USB, Bluetooth and/or Ethernet (local or internet) connection as well as transporting the SD card back to the download site.

The included, comprehensive DataView® software also provides the ability to view data from several hundred PEL units on a local network or over the internet providing the ability to evaluate energy usage on a department or facility basis anywhere in the world. Real-time data can be reviewed as well as downloading stored results for analysis and report generation.

Configuration of the PEL 103 instruments takes place through the DataView® software either locally or remotely. Most of the configured parameters are pre-set in the instrument keeping the user interface simple and straightforward and easy to complete in a few minutes. Current probes are automatically defined and calibrated when they are plugged into the unit. User selections include network type, demand interval, recording length, voltage and current ratios where necessary, recording duration (defined either by time and/or date) and communication method. Pass word protection can be initiated for Bluetooth and network communication to guard against unauthorized access and protection of data integrity.

The DataView® software provides the ability to review power, harmonic and RMS data in real time and to download recorded sessions for more extensive analysis and report generation. One second trend and demand interval trend graphs and tabular listings can be displayed and printed out. Energy costs can be calculated. Source and load graphs can be plotted. Individual phase and the sum of all phases can be evaluated. Once on screen, the user has access to a variety of analytical tools to analyze individual data points or sections of the recorded data without the frustration with having to deal with layers of button pushing to get to the information you need.

This simple to use yet comprehensive power and energy logger will be an invaluable asset to your energy monitoring and analysis.


  • Monitoring and mapping consumption on a site: The PEL 103 logger can track even the slightest consumption in a factory, workshop, building, agency, etc. It simultaneously allows real-time consumption monitoring alongside historical and comparative analysis of consumption.
  • Predictive maintenance: When installed for a long period in a cabinet, the PEL 103 logger constantly monitors the active, apparent and reactive power values on the electrical network involved. This means it will instantly detect whenever the subscribed power threshold is exceeded.
    With the software for automatically generating and printing reports, balance sheets, graphs or DataView summaries, users can act quickly on the cause of this overconsumption which will lead to higher bills. Indeed, every time your subscribed power threshold is exceeded, your bill will increase.
  • Networking and centralized consumption management: By setting up several PEL 100 Series loggers on a general electrical distribution system, local authorities for example can simplify their consumption management by controlling the allocation of the different types of consumption:
    • street-lighting network
    • common-area lighting network
    • common service network
    • general single-phase distribution network
    • three-phase distribution network
  • Measuring Savings: The recordings made with PEL100 electrical measuring instruments are time/datestamped. This makes it very simple to measure the gains achieved by comparing the recordings before and after modifying the installation.
    The reference is provided by the recordings from the PEL100 loggers before the modifications were made. You can then carry out the necessary work for maintenance or improvement of the electrical network or equipment. A correctly-positioned PEL100 will quickly enable you to target the places where work is needed without delay. Finally, a monitoring phase will help you to determine whether the solutions implemented are sufficient and, above all, to accurately measure any savings achieved. The monitoring by the PEL100 provides the recordings which will be compared with the reference.


  • RMS frequency, voltage and current
  • VA, W and var power values
  • VAh, Wh (source, load) and varh(4 quadrants) energy values, total energy
  • cos φ, tan φ and power factor (PF)
  • Crest factor
  • THD calculated for currents and voltages
  • Harmonics up to the 50th order for currents and voltages
  • DC, 50 Hz, 60 Hz and 400 Hz measurements
  • RMS AC or AC+DC
  • Display on LCD screen
  • Recording of measurements and calculation results on SD card
  • Automatic recognition of the sensor type connected
  • Large number of network types:split-phase, three-phase with or without neutral, etc.
  • USB and Bluetooth communication
  • Software for data transfer, real-time communication with a PC and report generation


  • 1 Year Manufacturers Warranty
  • 3 Year Warranty when registered with AEMC

What's Included

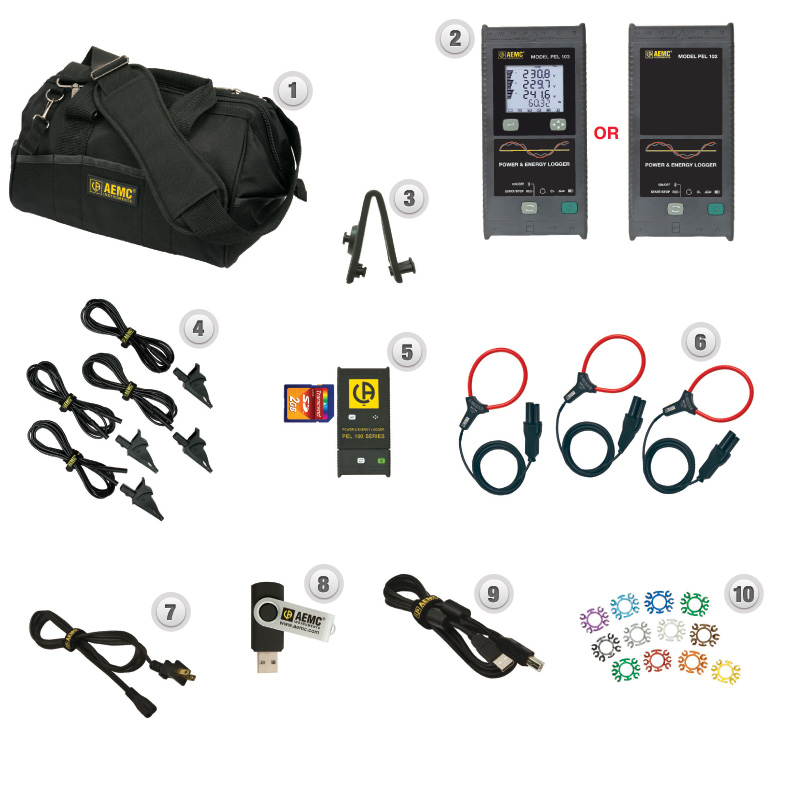

Included with the AEMC PEL 103 Power and Energy Logger
  1. Small Classic Tool Bag (x1)
  2. One of: PEL 102 or PEL 103
  3. Multiflex Mounting System (x1)
  4. Black Test Leads and Alligator Clips (x4)
  5. USB-SD-Card Adapter (x1)
  6. MiniFlex® Model MA193-10-BK (x3)
  7. Power Cord (x1)
  8. USB Stick with DataView® and User Manuals (x1)
  9. 5ft USB Cable (x1)
  10. Color-coded ID Markers (x12)

AEMC PEL 103 Specifications

Sampling Frequency 128 samples per cycle; 50/60Hz (16 samples/cycle 400Hz)
Data Storage Rate 1 per second
Demand Period Storage Rate User selectable (1, 2, 3, 4, 5, 6, 10, 12, 15, 20, 30 and 60 minutes)
Recorded Parameters (Single- and Poly-Phase) V, I, W, VA, var, PF, Tan, Wh, Vah, varh, THD (V and I)
Individual harmonics (from 1 through 50 per phase); Crest Factor (CF), Cos f / DPF
Event Log Tracks and records status changes and error messages along with recorded data
Front Panel Indicator LEDs Bluetooth active, recording in progress, phase connection reversal, overload, battery charging and SD Card status
Storage Capacity 2GB SD card (included) is used for storage. SD cards (up to 2GB); SDHC cards (4 to 32GB) formatted FAT32 are supported
Inputs Voltage: 3 voltage input channels via 4mm safety banana jacks
Current: 3 current input channels via custom 4 pin jacks that accept AEMC® probes and sensors
Communication Ports USB 2.0, Ethernet (RJ45), Wireless Bluetooth Class
Dimension/Weight 10.08 x 4.92 x 1.46" (256 x 125 x 37mm) / <1kg
Case / Index of Protection Double insulated, rubber over-molded, polycarbonate UL94 V1 rated / IP54 non operating
Mounting / Security Embedded magnets on back side, keyhole slot on back side / Kensington anti-theft system
Safety Rating / CE Rating Complies with IEC 61010-1:Ed3, and IEC 61010-2-030:Ed1 for 1000V CAT III / 600V CAT IV, Pollution Degree 2 / Yes
Click here for complete specifications on the AEMC PEL 103

PEL 100 Series Relaunch


Click on a category to view a selection of compatible accessories with the AEMC PEL 103 Single/Three-Phase Power & Energy Logger with LCD and Bluetooth.

AEMC MN193-BK Current Transformer for the L104, L564, PowerPad, and PEL Series MN193-BK
For use with AEMC Power Quality Instruments 8220, 8230, and 3945.
$249.00 USD

Learn More

AEMC SL261 AC/DC Current Probe, BNC, 100mV/A-10A Peak & 10mV/A-100A Peak SL261
This portable 100A peak current probe is insulated with a BNC output cable.
$449.00 USD

Learn More

AEMC SR193-BK Current Transformer for the AEMC L104, L564, PowerPad, and PEL Series SR193-BK
This AC Current Probe (1200A) is for use with AEMC Power Quality Instruments 8220, 8230 PowerPad Jr. & 3945 PowerPad.
$299.00 USD

Learn More

AEMC MR193-BK AC Current Probe for THE PowerPad and PEL Series MR193-BK
For use with AEMC 3945 PowerPad, 8220 & 8230 PowerPad Jr.
$399.00 USD

Learn More

AEMC 193-24-BK AmpFlex Current Transformer, 6500A, 24" 193-24-BK
For use with the AEMC 3945/3945-B, 8220, 8230 & 8335. Features a 24" long cable.
$269.00 USD

Learn More

AEMC MA193-10-BK MiniFlex Current Transformer, Ø2.75" MA193-10-BK
The AEMC MA193 MiniFlex current transformer is a flexible CT with a 10" sensor length. Can only be used as an accessory for the following power quality meters: 3945-B, 8335, 8220 and 8230.
$219.00 USD

Learn More

AEMC MN93-BK Current Transformer for the L104, L564, PowerPad, and PEL Series MN93-BK
For use with AEMC 8220 Single Phase Power Quality Analyzer, 8230 PowerPad Jr. & 3945 PowerPad.
$185.00 USD

Learn More

AEMC 193-36-BK AmpFlex Current Transformer, 6500A, 36" 193-36-BK
For use with the AEMC 3945/3945-B, 8220, 8230 & 8335. Features a 36" long cable.
$319.00 USD

Learn More

AEMC 2133.72 Small Classic Tool Bag, 13.0 x 9.8 x 9.5" 2133.72
Compact tool bag for field use by contractors, engineers, carpenters, plumbers, HVAC repairmen, maintenance personnel, architects, inspectors and other professionals.
$29.95 USD

Learn More

AEMC 2136.80 Replacement USB Cable for the 8510 & C.A 6116, 10ft 2136.80
Replacement USB Cable for use with the AEMC DTR Models 8510 & C.A 6116.
$15.95 USD

Learn More

AEMC 2140.46 Replacement USB Cable for 8333, 8335, & 8336, 5ft 2140.46
5ft USB cable for the AEMC 6290, 6292, 8333, 8335, 8336, 8435, C.A 6116, C.A 1727, and PEL Series.
$10.95 USD

Learn More

AEMC 2140.40 BNC Adapter for the SL261 AC/DC Current Probe 2140.40
BNC Adapter for use with the SL261, 8220, 8333, 8335, and 8336 AC/DC Current Probes.
$114.00 USD

Learn More

AEMC 2137.77 Power Adapter for PEL 102 & 103, CAT III, Pollution 2 2137.77
Accommodates powering the PEL 102 & PEL 103 from phase power. Powers from phase to neutral or phase to phase. Provides isolation between measurement and instrument power.
$199.95 USD

Learn More

AEMC 5000.43 Magnetized Voltage Probes, Colour Coded, Set of 2 5000.43
Set of 2, Red and Black Magnetized Voltage Probes. Rated 600V CAT IV, 1000V CAT III. For use with the AEMC 3945-B, 8220, 8230, 8335 and PEL Series.
$29.95 USD

Learn More

AEMC 5000.44 MultiFix Mounting System 5000.44
Universal Mounting System, for use with the AEMC 5212, 5215, 5217, 5231, & 5233. Replacement for PEL 102 & PEL 103.
$15.95 USD

Learn More

AEMC 5000.45 Replacement USB SD Card Adapter for the AEMC PEL 102 & 103 5000.45
Replacement USB SD-Card Adapter for AEMC Power Energy Logger PEL 102 and PEL 103.
$10.95 USD

Learn More

AEMC 2137.76 Test Leads, Set of 4, Black, 10ft (3m) 2137.76
Set of 4 Replacement black test leads for use with PEL series, includes with 4 black alligator clips & 12 color-coded ID markers.
$79.95 USD

Learn More
