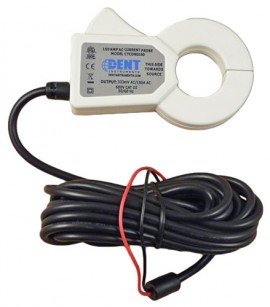

Dent CT-CON-0150EZ-U Current Transformer

Dent CT-CON-0150EZ-U Current Transformer

Model: CT-CON-0150EZ-U

Clamp-On Current Transformer. 1" (25Mm) Round Opening.

$81.00 USD

was $90.00

Availability: 10 in Stock
Add In House NIST Traceable Calibration to your CT-CON-0150EZ-U

High Performance 150A Clamp On CT

DENT's affordable and compact 150A EZ Clamp current transformers are the one-handed operating solution for temporary or long-term studies. They are designed to work in tight places and clamp around cables or buss bars.

Key Features

  • .5A - 300A AC range
  • Better than 1% accuracy across the full range
  • Millivolt output

CT-CON-0150EZ-U Specifications

Key Specifications
Window Size25mm (1.0°)
Current Range.5 - 300 A AC
Output333 mV @ 150 A AC
2.22 mV/A AC )
Accuracy<1.0 % from .5 A to 300 A AC
Phase Shift*<1° from 5-25 A AC
1° from 25-150A AC
<1.5° from 150-300A AC
Max Output666 mV @ 300 A
Wire PolarityRed = Hi, positive (+)
Black = Low, negative (-)
PhasingLabel On Case Points
OrientationToward Source
Frequency Range50 Hz to 400 Hz
Case MaterialWhite ABS, UL 94 V-0
Leads2.4 M (8’), 600V, 22 gage
Working Temperature-25 to 70°C (-13° to 158°F)
Working Voltage600 VAC, Category III
Dielectric Strength5200 VAC, 50/60 Hz for 1 minute
CertificationsConforms to: UL STD 61010-1
Certified to: CAN/CSA STD C22.2
No. 61010-1
Click here for complete specifications on the Dent CT-CON-0150EZ-U
