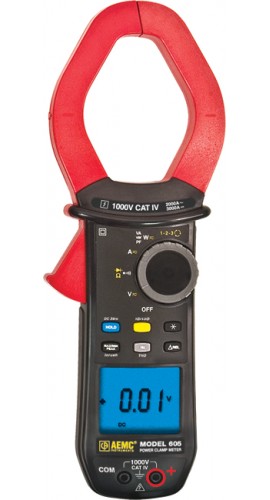

AEMC 605 True RMS Power Clamp Meter with Phase Rotation, 1000V AC/DC, 2000A AC/3000A DC

Model: 605 | Order No: 2139.60

Safety Rated at 1000V CAT IV, it is safe to operate in all electrical environments. Measures True RMS, 1000V AC/DC, 2000A AC/3000A DC, Ohms, Continuity, Power, THD.

$490.00 USD

1 Week

Add In House NIST Traceable Calibration to your 605

Clear selected options


AEMC 605 Offers

The AEMC 605 TRMS Power Clamp-on Meter provides a new standard for safety and measurement capability not available in any other clamp meter sold today. It is rugged enough for the most demanding work environments and will withstand both dust and water spray with its IP54 rating. It is ergonomically designed and easily used by one hand, including function selection and button pushing even with a glove on. In addition to the standard measurement of volts, amps, frequency, resistance, diode checking and continuity, the Model 605 offers several unequaled functions including: AC, DC and AC+DC volts, amps and power, True InRush®, Delta relative function, Phase rotation indication, Power measurements and more.

Features

  • 1000V CAT IV Rated
  • UL 94 flame retardant self-extinguishing
  • IP54 Rated
  • 10,000-count blue electroluminescent backlit display
  • Measures up to 1000VAC (1400V peak), 1000VDC and AC+DC with resolution to 10mV
  • Measures up to 2000AAC and 3000ADC
  • Measures single- and three-phase power (real, reactive and apparent) up to 3MW with resolution to 1W
  • Displays Power Factor
  • Measures frequency to 20kHz with 0.1Hz resolution
  • Auto selects AC or DC measurement
  • Measures AC+DC volts, amps and power
  • True InRush® current measurement with 1mS capture
  • Measures THDr and THDf
  • Detects and displays phase rotation
  • Delta relative function for tracking deviation from reference values
  • Tracks Min/Max values
  • Jaw opening up to 2.36"
  • Leads are constructed with a flexible silicone material

Applications

  • General purpose electrical troubleshooting
  • Motor start up analysis
  • Voltage troubleshooting
  • Bond and continuity checking
  • Phase sequence checking
  • Harmonic analysis
  • Power monitoring

AEMC 605 Specifications

Current AC (rms) 1000/2000A
Current DC 1500/3000A
Current AC+DC 1500/3000A
Voltage AC (rms) 1000/1000V
Voltage DC 1000/1000V
Voltage AC+DC 1000/1000V
Ohms 100/100kΩ
Continuity (Buzzer) Yes (< 40Ω)
Single- and 3-Phase Real Power (AC, DC, AC/DC) 1000/2000kW
3000/6000kW
Single- and 3-Phase Reactive Power (AC, DC, AC/DC) 1000/2000kvar
3000/6000kvar
Single- and 3-Phase Apparent Power (AC, DC, AC/DC) 1000/2000kVA
3000/6000kVA
Voltage Frequency (Hz) 20kHz
Current Frequency (Hz) 1kHz
Power Supply 4x1.5V AA
Dimension & Weight 4.37 x 11.65 x 1.61" (11 x 296 x 41mm)/ 640g
Click here for complete specifications on the AEMC 605

What's included with the AEMC 605

  • True RMS Power Clamp-on Meter with Phase Rotation
  • 2152.03 Silicone Lead Set, 1000V CAT IV
  • 2139.72 Soft Case
  • Set of 4 AA 1.2V Batteries
  • Manual
