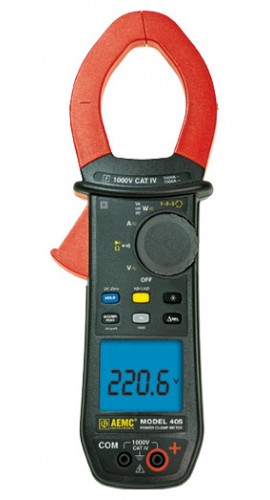

AEMC 405 True RMS Clamp Meter with Phase Rotation, 1000V AC/DC, 1000A AC/1500A DC
Downloads:
datasheet manual



AEMC 405 True RMS Clamp Meter with Phase Rotation, 1000V AC/DC, 1000A AC/1500A DC

Model: 405 | Order No: 2139.50

Safety Rated at 1000V CAT IV, it is safe to operate in all electrical environments. It is rugged enough for the most demanding work environments and will withstand both dust and water spray with its IP54 rating. Measures True RMS, 1000V AC/DC, 1000A AC/1500A DC, Ohms, Continuity, Power, and THD.

$350.00 USD

1 Week

Add In House NIST Traceable Calibration to your 405

Clear selected options



Recommended Accessories

AEMC 405 Offers

The AEMC 405 TRMS Power Clamp-on Meter provides a new standard for safety and measurement capability not available in any other clamp meter sold today. It is ergonomically designed and easily used by one hand, including function selection and button pushing even with a glove on. In addition to the standard measurement of volts, amps, frequency, resistance, diode checking and continuity, the Model 405 offers several unequaled functions including: AC, DC and AC+DC volts, amps and power, True InRush®, Delta relative function, Phase rotation indication, Power measurements and more.

Features

  • 1000V CAT IV Rated
  • UL 94 flame retardant self-extinguishing
  • IP54 Rated
  • 10,000-count blue electroluminescent backlit display
  • Measures up to 1000VAC (1400V peak), 1000VDC and AC+DC with resolution to 10mV
  • Measures up to 1000AAC and 1500ADC
  • Measures single- and three-phase power (real, reactive and apparent) up to 3MW with resolution to 1W
  • Displays Power Factor
  • Measures frequency to 20kHz with 0.1Hz resolution
  • Auto selects AC or DC measurement
  • Measures AC+DC volts, amps and power
  • True InRush® current measurement with 1mS capture
  • Measures THDr and THDf
  • Detects and displays phase rotation
  • Delta relative function for tracking deviation from reference values
  • Tracks Min/Max values
  • Jaw opening up to 1.89"
  • Leads are constructed with a flexible silicone material

Applications

  • General purpose electrical troubleshooting
  • Motor start up analysis
  • Voltage troubleshooting
  • Bond and continuity checking
  • Phase sequence checking
  • Harmonic analysis
  • Power monitoring

AEMC 405 Specifications

Electrical Specifications
A AC 0.15 to 1000A (1500A peak)
A DC 0.15 to 1000A
A AC+DC 0.15 to 1000A (1500A peak)
Best Accuracy 1% of Reading + 3 counts
V AC 0.15 to 1000A (1400V peak)
V DC 0.15 to 1400V
V AC+DC 0.15 to 1000A (1400V peak)
Best Accuracy 1% of Reading + 3 counts
Hz Current: 5.0Hz to 2000Hz
Voltage: 5.0Hz to 20.00Hz
Ohm 0.1Ω to 99.99kΩ
Open Circuit Voltage ≤8V
Measurement Current ≤680μA
Audible Continuity Yes
Continuity Threshold Adjustable from 1 to 999Ω
Diode Test (semiconductor junction) Yes
Singephase and Total Three-phase Power Values Yes
Active Power 1W to 1000KW
Apparent Power 1VA to 1000kVA
FP / DPF Yes/No
Harmonic Analysis Yes
THDf/THDr Yes/Yes
Phase Rotation (2-wire method) Yes
Mechanical Specifications
Clamping Diameter 1.89" (48mm)
Display Backlit LCD
Resolution 10,000 counts
Auto Power Off Yes
Electrical Safety as per IEC 61010 1000V CAT IV; 1000V CAT III
Power Supply 4x1.5V AA
Dimension & Weight 3.62 x 10.70 x 1.31" (92 x 272 x 41mm)/ 600g
Click here for complete specifications on the AEMC 405

What's included with the AEMC 405

  • True RMS Clamp-on Meter
  • 2152.03 Silicone Lead Set, 1000V, CAT IV Rated
  • 2139.72 Soft Carrying Case
  • Set of 4 AA 1.2V Batteries
  • Manual

Accessories

Click on a category to view a selection of compatible accessories with the AEMC 405 True RMS Clamp Meter with Phase Rotation, 1000V AC/DC, 1000A AC/1500A DC.

AEMC 2139.72 Soft Carrying Case 2139.72 89259
Replacement Case for use with Clamp-on Meter Models 401, 403, 405, 601, 603 & 606
$18.95 USD

Learn More
