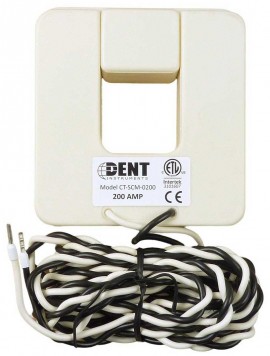

Dent CT-SCM-0200-U Current Transformer

Dent CT-SCM-0200-U Current Transformer

Model: CT-SCM-0200-U

Medium Split Core Current Transformer. 200A.

$70.00 USD

1 Week

DENT Instruments CT-SCM-0200-U Offers

Split-core current transformers are an economical means to measure amperage over a broad range of services in a variety of applications. CTs ranging from 50A to 1000A are available.

Key Features

  • Eight split core CTs available ranging from 50A to 1000A AC
  • Three window sizes: Small, Medium, and Large
  • Check individual spec sheets below for detailed accuracy information
  • Millivolt output

CT-SCM-0200-U Specifications

Key Specifications
Window Size1.25" (3.20 cm)
Current Range4 - 260A AC
Output333 mV @ rated current
Ratio Error*<1.0% at rated current (typical)
Phase Error*<2° at rated current (typical)
Output333 mV @ rated current
Wire PolarityWhite = Hi, positive (+)
Black = Low, negative (-)
Frequency Range50 to 400 Hz
Case MaterialEpoxy encapsulated housing
Leads2.7 M (8’), twisted pair, 20 AWG
Operating Temperature–20° to 55°C (-4° to 131°F)
Storage Temperature-20 to 85°C (-4 to 185°F)
Working Voltage600 VAC, Category III
Dielectric Strength5000 VAC around case
600V rated leads
Certification Conforms to: UL STD 61010-1 EN 60044-1 Certified to: CAN/CSA STD C22.2 No. 61010-1
Click here for complete specifications on the Dent CT-SCM-0200-U
