Socomec Diris A40 Series of Multi-Functional Power Meters

Model: A40 | Order No: A40 Series

A powerful line of revenue grade multifunctional power & energy meters for industrial & commercial metering applications. Seven different plug-in expansion cards add a variety of inputs, outputs, communications and memory. Available with either a 110-240V AC or 24-48V DC power supply.

Help with Ordering

Select a Model

SPECIAL! 4825U201

Diris A40 multifunctional revenue grade class 0.5 power supply with 110-240V AC power supply.

$682.00 USD

was $698.24

2 to 3 Weeks


48251U01

Diris A40 multifunctional revenue grade class 0.5 power supply with 24-48V DC power supply.

$817.00 USD

2 to 3 Weeks


Monitoring and managing energy for high/low voltage electrical installations

The DIRIS A40 is a revenue grade class 0.5 power meter for measuring the extent of electrical values for all LV/HV networks.

They allow starting from the front panel to configure and display all the electric parameters and to exploit the functions of measurement, metering and energies management, harmonics analysis, remote control and control state of control devices, communication and detection of high voltages, peaks and voltage disconnections.

In addition, DIRIS A40 has a function for correcting connection errors.


Key Features

  • Revenue grade accuracy.
  • Advanced metering and multi-measurement
  • Individual harmonics up to level 63
  • RS485 (Jbus/Modbus and Profibus-DP) and Ethernet communication (Modbus TCP and Jbus/Modbus over TCP)
  • Optional additional modules
  • Alarm management
  • Predictive power indicator
  • 96 x 96 mm panel mount
The Socomec Diris A40 Setup

Specifications

Multi measurement

Current

  • instantaneous: I1, I2, I3, In, Isystem
  • average/maximum average: I1, I2, I3, In

Voltages & frequency

  • instantaneous: U1, U2, U3, U12, U23, U31, F, Vsystem, Usystem
  • average/maximum average: U1, U2, U3, U12, U23, U31, F

Power

  • instantaneous: 3P, ΣP, 3Q, ΣQ, 3S, ΣS
  • average/maximum average: ΣP, ΣQ, ΣS
  • predictive: (ΣP), (ΣQ), (ΣS)

Power factor

  • instantaneous: 3PF, ΣPF
  • average/maximum average: ΣPF
Metering
  • Active energy:+/- kWh
  • Reactive energy:+/- kvarh
  • Apparent energy:kVAh
Harmonic analysis

Harmonic distortion rate

  • Currents: thd I1, thd I2, thd I3, thd In
  • Phase-to-neutral voltage: thd U1, thd U2, thd U3
  • Phase to phase voltage: thd U12, thd U23, thd U31

Individual up to level 63

  • Currents: HI1, HI2, HI3, HIn
  • Phase-to-neutral voltage: HU1, HU2, HU3
  • Phase to phase voltage: HU12, HU23, HU31

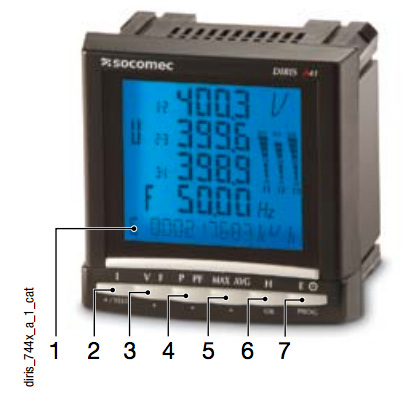

The Socomec Diris A40 Unit Overview

  1. Backlit LCD screen.
  2. Pushbutton for currents and setup wiring correction
  3. Pushbutton for voltages and frequency
  4. Pushbutton for active, reactive, and apparent power and power factor
  5. Pushbutton for maximum and average current and power values
  6. Pushbutton for harmonics values
  7. Pushbutton for pulse, hours and electrical energy meters
